🐳 Docker Ready 📄 Free & Open Source ✨ Built 100% with GitHub Copilot

Transform Terraform Plans Into Readable Reports

Stop drowning in verbose plan output. Generate structured Markdown reports that render perfectly in PR comments.

The Pull Request Review Problem

Reviewing Terraform changes in PRs is painful with raw plan output

Raw Terraform Plan
# azurerm_network_security_rule.security_rule[2] will be created
+ resource "azurerm_network_security_rule" "rule" {
  + access                     = "Allow"
  + destination_address_prefix = "10.0.0.0/8"
  + destination_port_range     = "22"
  + direction                  = "Inbound"
  + name                       = "ssh_from_corporate"
  + priority                   = 100
  + protocol                   = "Tcp"
  + source_address_prefix      = "10.0.0.0/8"
  + source_port_range          = "*"
  + resource_group_name        = "rg-network"
  + network_security_group_name = "nsg-prod"
  }

# azurerm_network_security_rule.security_rule[3] will be created
+ resource "azurerm_network_security_rule" "rule" {
  + access                     = "Deny"
  + destination_address_prefix = "*"
  + destination_port_range     = "3389"
...
  • ✗
    Wall of Text

    Raw plan output is overwhelming and difficult to scan

  • ✗
    Lost Context

    Hard to understand what's actually changing and why

  • ✗
    Mental Mapping

    Constantly mapping resource IDs to names in your head

  • ✗
    Cryptic Diffs

    Index changes instead of semantic "what actually changed"

tfplan2md Solves This

  • ✓
    Security Changes as Readable Tables

    Firewall and NSG rules rendered with protocols, ports, and actions

  • ✓
    Friendly Names, Not GUIDs

    Principal IDs, role names, and scopes resolved to readable text

  • ✓
    Inline Diffs for Large Values

    Shows computed diffs for large values like JSON policies or scripts

  • ✓
    Optimized for PR Comments

    Designed and tested for GitHub and Azure DevOps rendering

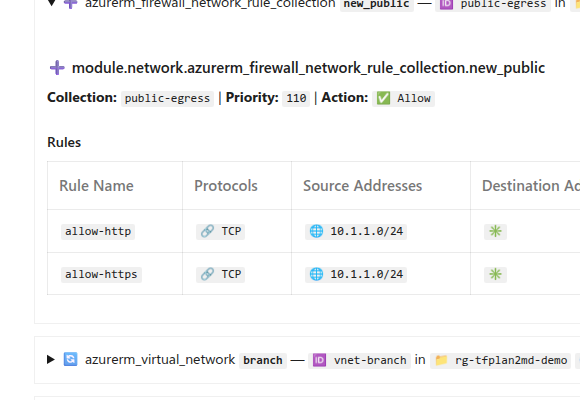

tfplan2md Report
tfplan2md firewall rules with inline diffs showing rule changes

Click to enlarge

Get Started in Seconds

Run one command to convert your Terraform plan

Get Started View Examples
terraform show -json plan.tfplan | docker run -i oocx/tfplan2md

Powerful Features

Everything you need for better Terraform PR reviews

Inline Diffs

Inline Diffs

Side-by-side "Before" and "After" values with inline highlighting show exactly what changed.

Learn more →
Firewall Rules

Firewall Rules

Azure Firewall rule collections rendered as readable tables with protocols, ports, and actions.

Learn more →
NSG Rules

NSG Rules

Network Security Group rules as readable tables, making security changes easy to audit.

Learn more →
Role Assignments

Role Assignments

Resolves cryptic Principal IDs, role names, and scopes to human-readable names.

Learn more →
Large Values

Large Values

Multi-line values like JSON policies show computed diffs with inline highlighting.

Learn more →
PR Compatibility

PR Optimized

Designed and tested for rendering in markdown pull requests on Azure DevOps & GitHub.

Learn more →
Friendly Names

Friendly Names

Displays friendly names for resources instead of complex resource ID strings.

Learn more →

Perfect for CI/CD

Integrate tfplan2md into your GitHub Actions, Azure Pipelines, or GitLab CI workflow. Automatically post plan reports as PR comments.

View Integration Guides
- name: Generate markdown report
  run: |
    terraform show -json plan.tfplan | \
      docker run -i oocx/tfplan2md > plan.md

- name: Post PR comment
  uses: actions/github-script@v7
  with:
    script: |
      const fs = require('fs');
      const plan = fs.readFileSync('plan.md', 'utf8');

      github.rest.issues.createComment({
        issue_number: context.issue.number,
        owner: context.repo.owner,
        repo: context.repo.repo,
        body: plan
      });
- script: terraform show -json plan.tfplan > plan.json
  displayName: 'Convert to JSON'
  workingDirectory: terraform

- script: |
    docker run -v $(pwd):/data oocx/tfplan2md \
      /data/plan.json --output /data/plan.md
  displayName: 'Generate markdown report'
  workingDirectory: terraform

- bash: |
    MARKDOWN=$(cat terraform/plan.md)
    URL="$(System.TeamFoundationCollectionUri)$(System.TeamProject)/_apis/git/repositories/$(Build.Repository.ID)/pullRequests/$(System.PullRequest.PullRequestId)/threads?api-version=7.0"

    BODY=$(jq -n \
      --arg content "$MARKDOWN" \
      '{comments: [{content: $content, commentType: 1}], status: 1}')

    curl -X POST "$URL" \
      -H "Content-Type: application/json" \
      -H "Authorization: Bearer $(System.AccessToken)" \
      -d "$BODY"
  displayName: 'Post PR comment'
